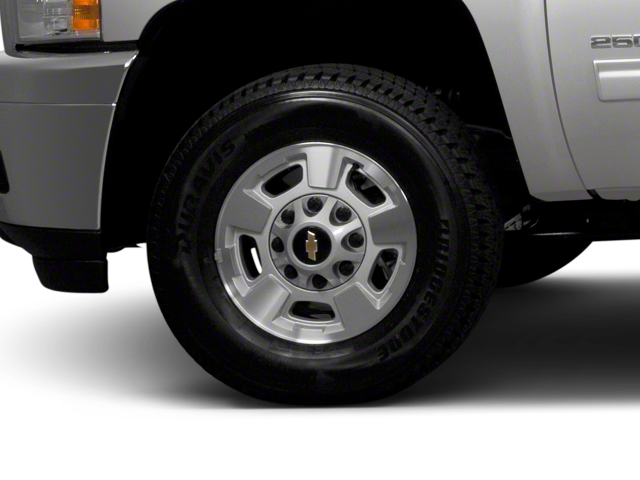

• Wheels, 17" (43.2 cm) steel (Includes 17" x 7.5" (43.2 cm x 19.1 cm) steel spare wheel. Spare not included with (ZW9) pickup box delete unless a spare tire is ordered.)
• Tires, LT245/75R17 all-season, blackwall
• Pickup box, Fleetside
• Tire carrier, outside spare, winch-type mounted under frame at rear (Orders with (ZW9) Pickup box delete will not include a Spare Tire Carrier unless a spare tire is ordered)
• Bumper, front chrome includes chrome bumper end caps

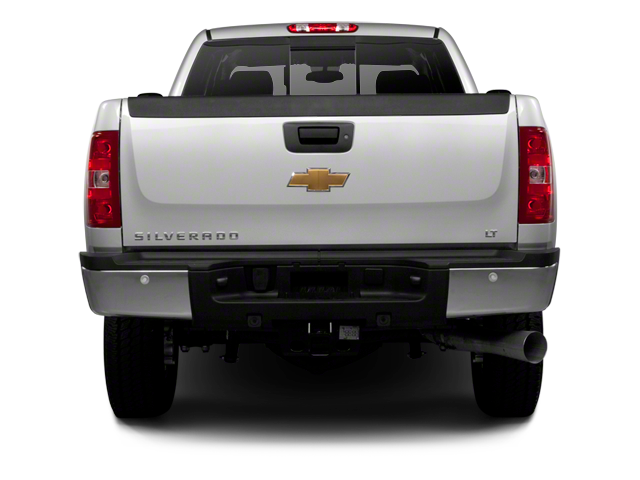

• Bumper, rear chrome, step-style with pad (Not available with (ZW9) pickup box delete.)

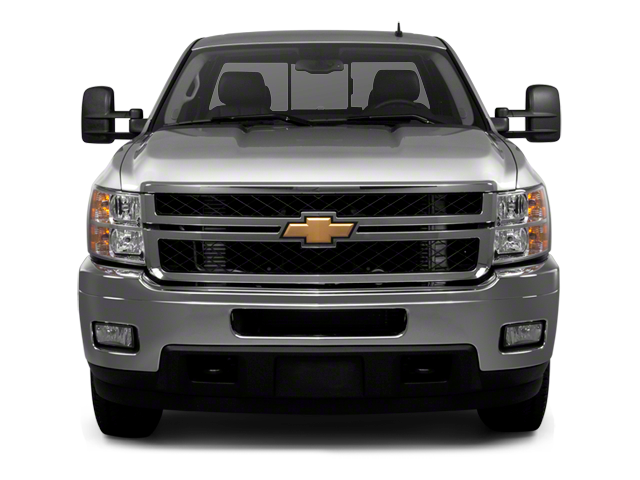

• Grille, chrome surround
• Headlamps, dual halogen composite with automatic exterior lamp control and flash-to-pass feature
• Lamps, dual cargo area lamps
• Mirrors, outside manual, Black, manual-folding
• Wipers, front intermittent wet-arm with pulse washers
• Door handles, Black

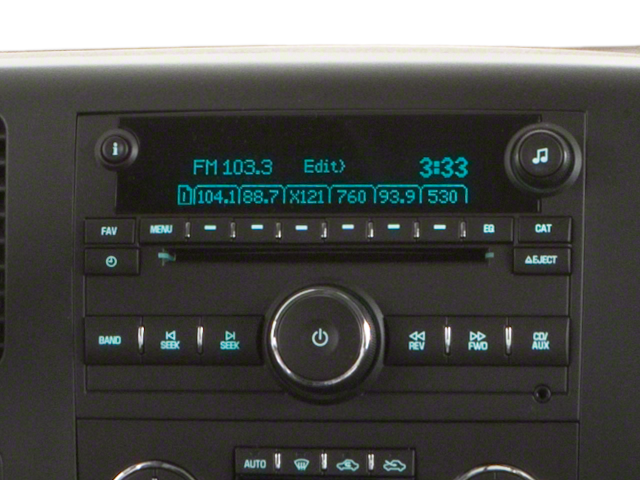

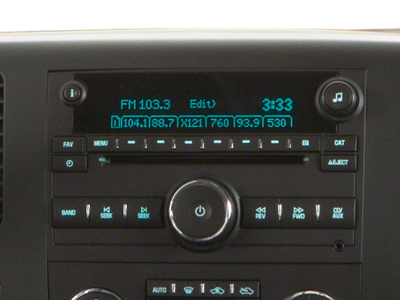

• Audio system, AM/FM stereo with seek-and-scan and digital clock (Not available with (U2K) XM Radio.)
• XM Radio, delete
• Audio system feature, speaker system (Included with (5B5) power windows, doors and locks, SEO. Includes 4 speakers on Regular Cab models and 6 speakers on Extended and Crew Cab models.)

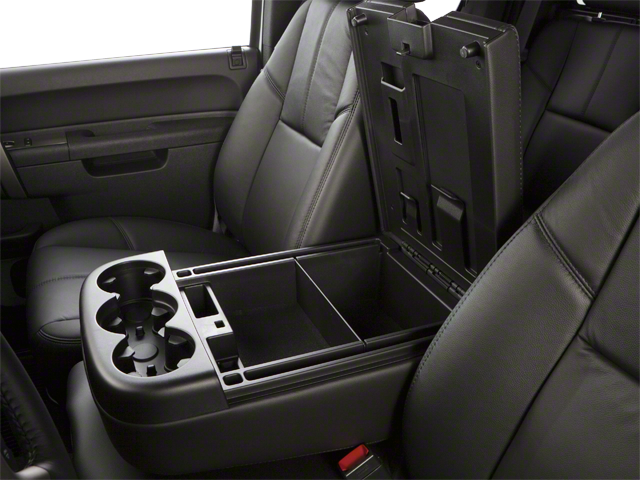

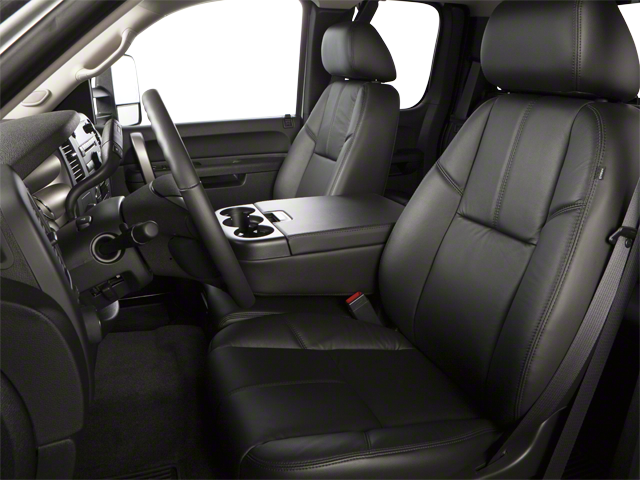

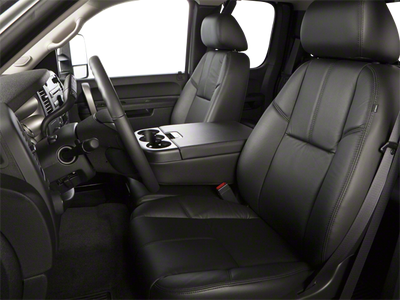

• Seats, front 40/20/40 split-bench, 3-passenger, driver and front passenger manual reclining with outboard head restraints and center fold-down armrest with storage
• Seat trim, Vinyl

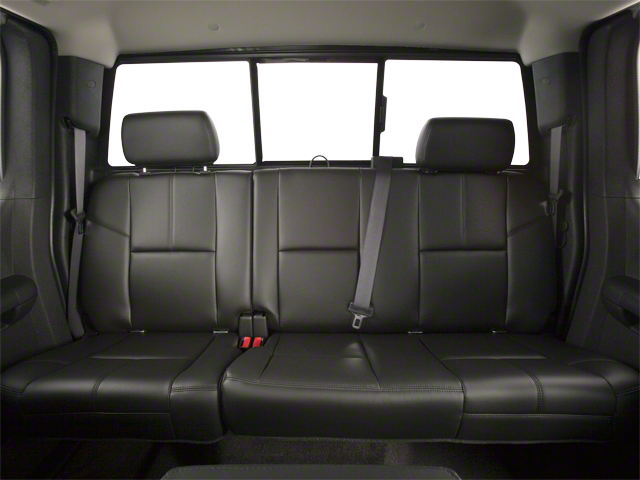

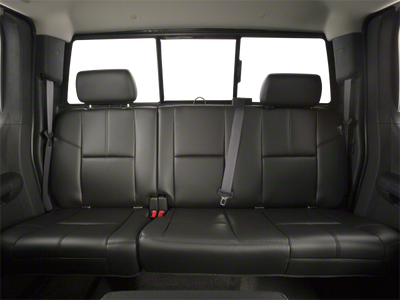

• Seat, rear bench (folds up), full width, folding, 3-passenger (includes child seat top tether anchor) (Standard with Extended Cab models only)
• Floor covering, Black rubberized vinyl

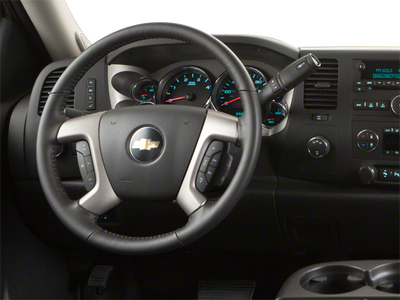

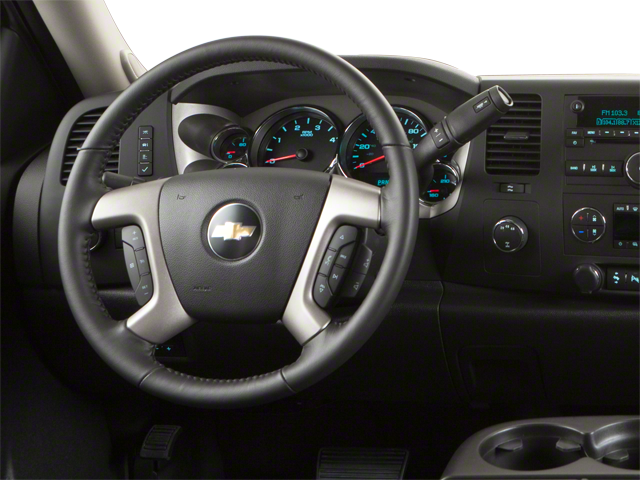

• Steering wheel includes theft-deterrent locking feature
• Warning tones headlamp on, key-in-ignition, driver and passenger buckle up reminder and turn signal on
• Windows, fixed, rear access door (Standard with Extended Cab models only)

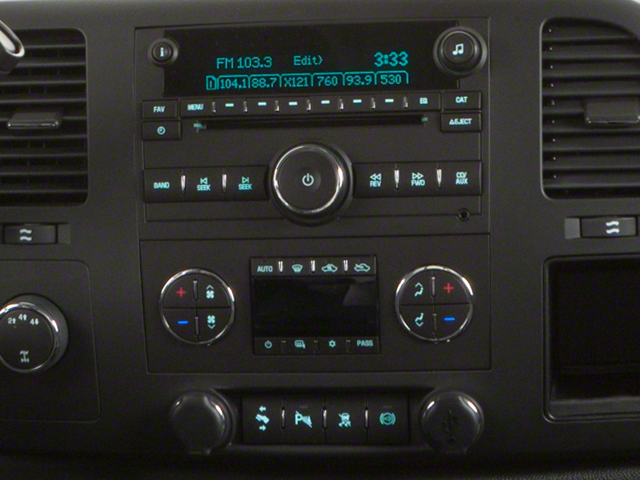

• Air conditioning, single-zone manual front climate control
• Cup holders, front (Also includes rear cupholders on Extended and Crew Cab models)
• Power outlets 2 auxiliary instrument panel-mounted with covers, 12-volt
• Mirror, inside rearview manual day/night
• Visors, driver and front passenger, sliding with clip and passenger side vanity mirror with cover, Opal Gray-colored
• Assist handle, front passenger (Also includes rear assist handles in the headliner on Extended and Crew Cab models)
• Lighting, interior with dome and reading lights, illuminated entry feature and backlit instrument panel switches
• Coat hooks, rear driver and passenger side

• StabiliTrak, stability control system includes electronic trailer sway control, intelligent brake assist and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Air bags, frontal, driver and right-front passenger (Always use safety belts and the correct child restraints for your child's age and size. Even in vehicles equipped with air bags and the Passenger Sensing System, children are safer when properly secured in a rear seat in the appropriate infant, child or booster seat. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. See the Owner's Manual and child safety seat instructions for more safety information.)
• OnStar, delete
• Tire Pressure Monitoring System (does not apply to spare tire)

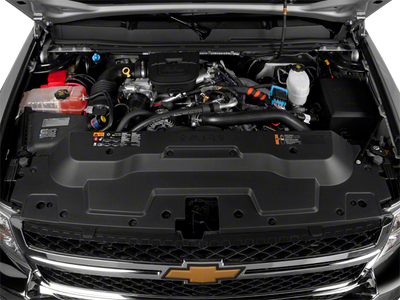

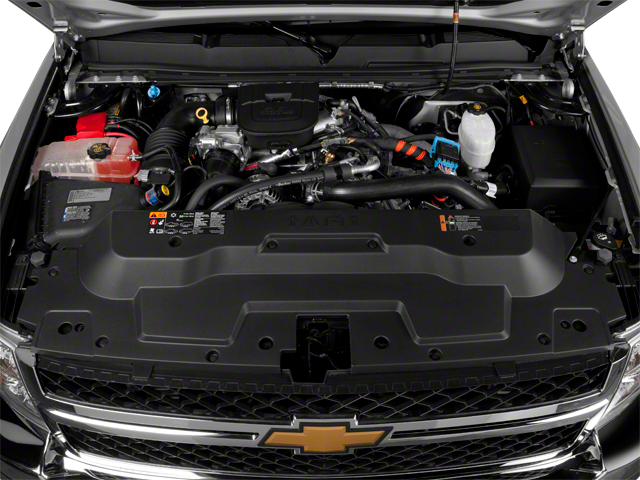

ENGINE, VORTEC 6.0L VARIABLE VALVE TIMING V8 SFI

• (360 hp [268.4 kW] @ 5400 rpm
• 380 lb-ft of torque [513.0 N-m] @ 4200 rpm) with (E63) fleetside pickup box; (322 hp [240.1 kW] @ 4400 rpm
• 380 lb-ft of torque [513.0 N-m] @ 4200 rpm) with (ZW9) pickup box delete (STD)

• 5B5
• 6P3
• AU0
• K34
• L96
• MYD
• US8

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 600
• Maximum Alternator Capacity (amps): 125
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 4400
• Gross Axle Wt Rating - Rear (lbs): 6200
• Curb Weight - Front (lbs): 3439
• Curb Weight - Rear (lbs): 2657
• Gross Vehicle Weight Rating Cap (lbs): 9500
• Gross Combined Wt Rating (lbs): 16000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 9700
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1455
• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 9700
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 2425
• Maximum Trailering Capacity (lbs): 14200
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 4400
• Spring Capacity - Rear (lbs): 6200
• Axle Type - Front: Independent
• Axle Type - Rear: Semi Floating
• Axle Capacity - Front (lbs): 4400
• Axle Capacity - Rear (lbs): 6200
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): 1.31
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.8 x 1.57
• Rear Brake Rotor Diam x Thickness (in): 14.17 x 1.34
• Tires
• Front Tire Order Code: QHQ
• Rear Tire Order Code: QHQ
• Front Tire Size: LT245/75R17
• Rear Tire Size: LT245/75R17
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): 3195
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x - TBD -
• Rear Wheel Size (in): 17 x - TBD -
• Spare Wheel Size (in): 17 x 7.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 24
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 51.8
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 36
• Fuel Tank Location: - TBD -
• Exterior Dimensions
• Wheelbase (in): 158.2
• Length, Overall w/o rear bumper (in): 249.5
• Width, Max w/o mirrors (in): 80.0
• Height, Overall (in): 77.6
• Overhang, Front (in): 38.8
• Overhang, Rear w/o bumper (in): 52.6
• Front Bumper to Back of Cab (in): 141.4
• Cab to Axle (in): 55.6
• Cab to End of Frame (in): - TBD -
• Ground to Top of Load Floor (in): 38.1
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): 9.8
• Ground Clearance, Rear (in): 8.5

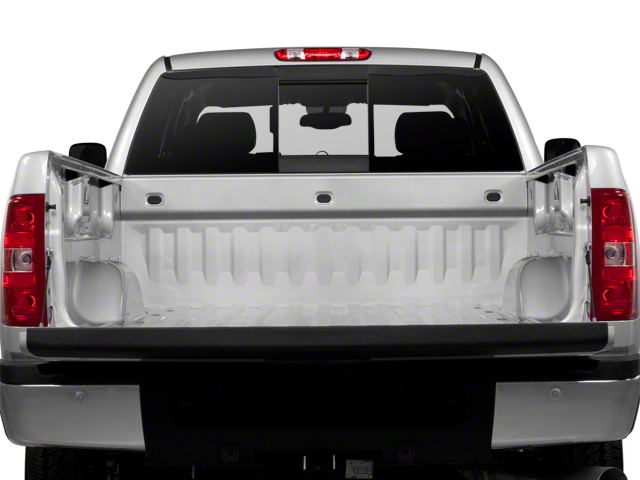

• Cargo Area Dimensions
• Cargo Box Length @ Floor (in): 97.8
• Cargo Box Width @ Top, Rear (in): - TBD -
• Cargo Box Width @ Floor (in): 62.5
• Cargo Box Width @ Wheelhousings (in): 50.6
• Cargo Box (Area) Height (in): 21.0
• Tailgate Width (in): 61.6
• Cargo Volume (ft³): 75.5
• Ext'd Cab Cargo Volume (ft³): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.1
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 65.2
• Front Hip Room (in): 60.3
• Second Head Room (in): 39.5
• Second Leg Room (in): 34.4
• Second Shoulder Room (in): 65.3
• Second Hip Room (in): 61.8
• Summary

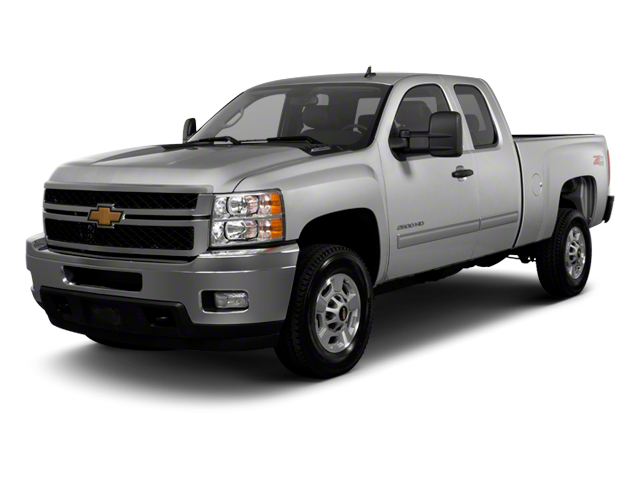

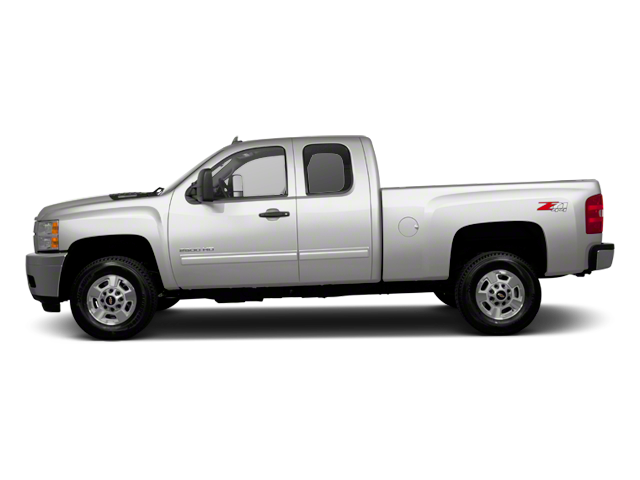

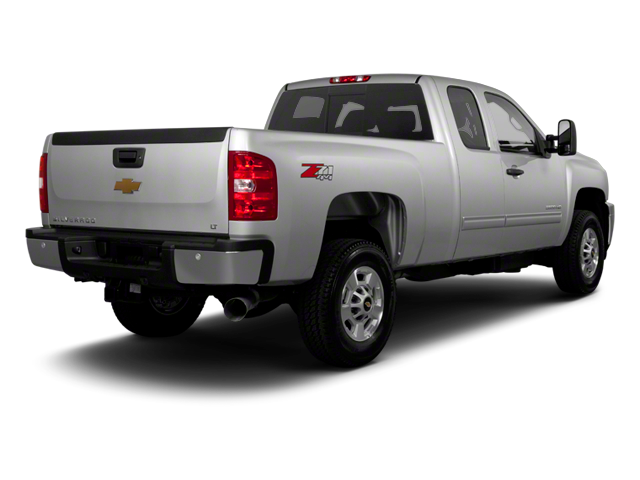

• Vehicle Name: Chevrolet Silverado 2500HD
• Body Style: Ext Cab 8' Fleetside
• Body Code: E63
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: - TBD -
